In the manufacture of dual-laminate composite vessels, the interface between the thermoplastic inner liner and the structural outer shell represents the critical point of containment integrity. While the outer Fiberglass Reinforced Plastic (FRP) shell provides high-strength structural rigidity, the thermoplastic liner (typically Polypropylene, PVDF, or FEP) provides the chemical containment barrier. The weakest links in any thermoplastic liner are the welded seams. Traditionally, manual welding has been susceptible to human error, resulting in micro-voids, cold joints, and premature liner failure. To eliminate this vulnerability, Ghaziabad Polymers Pvt. Ltd. (GPPL) has integrated automated Ritmo Polyfusion butt-welding systems into its production line.
This article reviews the engineering principles behind automated polyfusion welding and why it is the baseline requirement for high-performance chemical containment systems.
What Is Polyfusion Welding?
Polyfusion welding, or heated tool butt-welding, is a process where the ends of thermoplastic sheets or pipes are pressed against a heated flat plate until the polymer melts. The heating element is then quickly withdrawn, and the melted ends are brought together under precisely controlled pressure to cool and solidify, creating a homogeneous molecular bond. Unlike hot gas hand welding, which relies on a welding rod and manual speed control, polyfusion welding fuses the entire cross-section of the sheet simultaneously, achieving joint strengths that match 95-100% of the parent material's tensile strength.
By automating this cycle, the temperature, approach pressure, changeover time, and cooling duration are controlled dynamically by the machine's computer, removing human variation from the joint quality.
The Ritmo Advantage
GPPL utilizes Ritmo automated polyfusion welding machines to fabricate the thermoplastic sheets that form the inner liners of our chemical tanks. The Ritmo system incorporates several proprietary controls:
1. Dynamic Alignment Control: The machine's hydraulic chassis maintains perfect coplanar alignment of the sheets during the heating and fusion phases. Even minor misalignment (offsets greater than 10% of sheet thickness) can introduce local stress concentrations, leading to stress-corrosion cracking under chemical exposure.
2. Temperature Profiles: The heating plate's surface temperature is monitored continuously at multiple points to ensure temperature uniformity within ±2°C. For materials like PVDF, which has a narrow processing window (230°C to 240°C), temperature deviations can result in cold welds or thermal degradation of the polymer chain.
3. Automated Changeover: The changeover phase — the time between removing the heating plate and joining the sheets — is completed in under 4 seconds. Minimizing this time prevents the molten polymer surface from cooling or oxidizing in the air, ensuring complete molecular interdiffusion.
"Automated polyfusion welding is not just about speed; it is about repeatability. In a tank containing 50,000 liters of concentrated hydrochloric acid, we cannot afford even a single millimetric defect in a weld seam." — Manu Singh, Director, GPPL
Dual-Laminate Applications

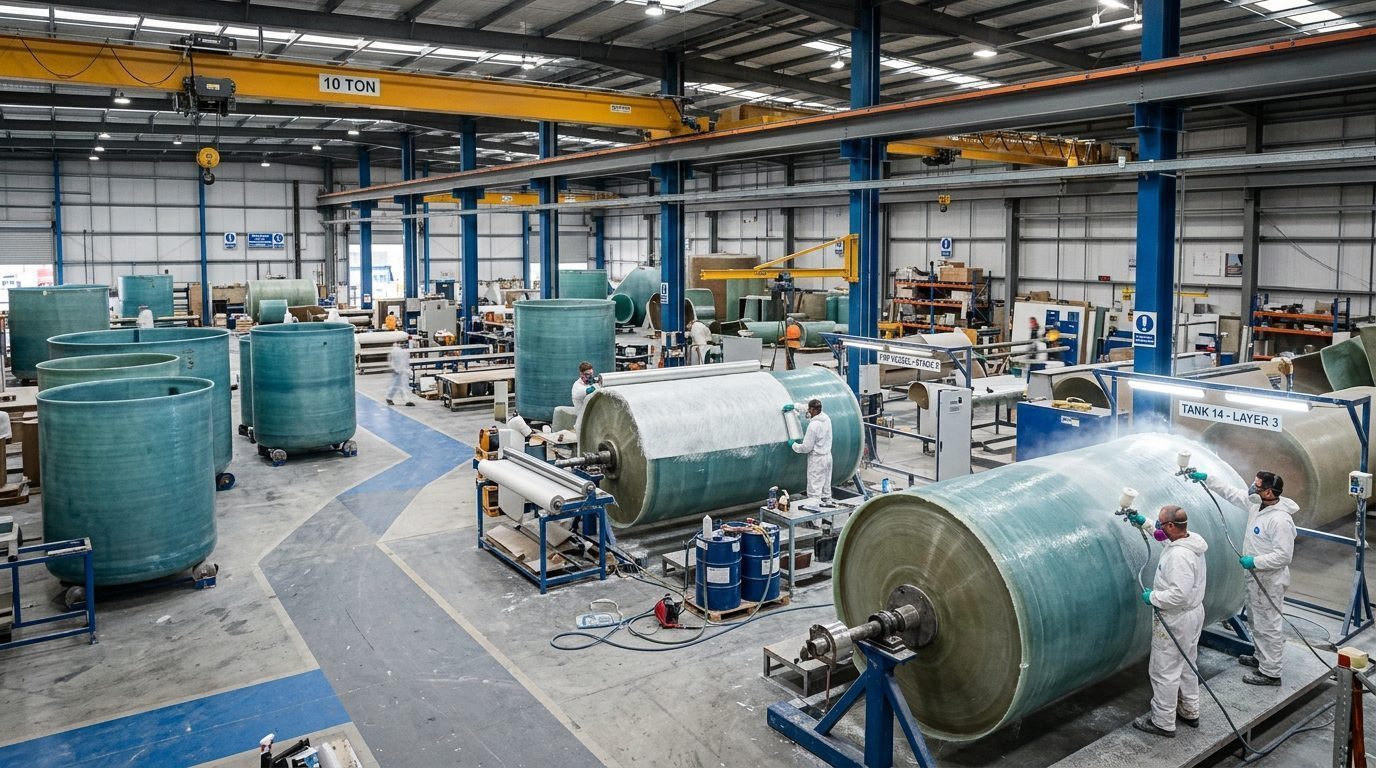

Dual-laminate tanks combine the chemical resistance of plastics with the mechanical strength of FRP. The fabrication sequence begins with the construction of the thermoplastic inner vessel using the Ritmo polyfusion welder. After the liner is welded, the external surface is prepared to create a mechanical or chemical bond with the FRP structural shell. This is achieved by either using fabric-backed sheets (where polyester or glass fiber fabric is partially embedded in the thermoplastic sheet during extrusion) or by applying a specialized chemical adhesion promoter.
The FRP structural shell is then wound or laminated directly over the prepared liner, creating a monolithic, corrosion-resistant containment structure. Dual-laminate construction is mandatory for applications storing highly oxidizing chemicals (like Sodium Hypochlorite) or working at temperatures above 80°C where standard FRP chemical barriers would degrade.
Quality Control & Testing
To validate weld integrity, every joint undergoes a strict Quality Assurance protocol at GPPL. This includes:
Spark Testing (Holiday Detection): A high-voltage DC spark tester (up to 10 kV) is passed over all welded seams. The thermoplastic liner acts as an electrical insulator; if a pinhole or void exists in the weld, the electrical current arcs through to the conductive fabric backing, indicating a leak location that must be ground out and re-welded.
Destructive Weld Qualification: Before commencing production, test coupons are welded under identical conditions and subjected to bend and tensile testing to DVS 2203 standards. The joint must exhibit a weld factor of at least 0.9, meaning the weld retains 90% or more of the parent sheet's tensile strength.
Conclusion
The integration of automated Ritmo polyfusion welding has allowed GPPL to deliver dual-laminate chemical tanks that meet international DVS and ASME standards, providing our clients with absolute security when storing aggressive industrial chemicals. As process safety standards tighten globally, automated joint fabrication is no longer an optional upgrade — it is the baseline requirement for reliable containment engineering.
