The integrity of a thermoplastic-lined chemical vessel or a polypropylene/HDPE piping system depends entirely on the quality of its welded joints. Unlike metals, where arc welding produces fusion zones with well-characterized metallurgical properties, thermoplastic welding requires precise control of heating temperature, applied pressure, and cooling time to produce joints that approach the strength of the parent material. The DVS (Deutsches Institut für Schweißtechnik — German Welding Society) standards for thermoplastic butt welding and extrusion welding represent the most rigorous and widely adopted global reference framework for this discipline.

At Ghaziabad Polymers Pvt. Ltd., all thermoplastic liner fabrication for dual-laminate vessels and FRP-lined piping systems is performed in accordance with DVS 2207 and associated standards. This article explains the technical basis of these standards and their importance for industrial chemical containment applications.

DVS Standards Overview

The DVS 2207 series is a comprehensive collection of standards governing the welding of thermoplastic materials. The most relevant standards for industrial chemical vessel fabrication include:

DVS 2207-1: Butt welding of thermoplastic pipes and sheets — covers the welding of PE, PP, PVDF, and PVC materials using heated tool butt welding machines (polyfusion welding). Specifies heating temperatures, heating times, pressure profiles (approach pressure, heating pressure, changeover time, fusion pressure, cooling time) as a function of wall thickness and material type.

DVS 2207-4: Extrusion welding of semi-finished thermoplastic products — covers the fabrication of thick-walled joints using an extrusion welding machine that deposits molten filler material (same material as the substrate) into a prepared weld groove. Used for joints too thick for hot gas welding and for filling connection welds on tanks and vessels.

DVS 2207-11: Electrofusion welding — covers socket fusion and electrofusion couplings for pipe joints in PE and PP systems where butt welding is not feasible. Less relevant for vessel fabrication but important for field piping connections.

"A thermoplastic weld made outside the DVS parameter window — even by a small margin — can result in a joint that looks visually perfect but has only 50-60% of parent material strength. In chemical service, this is a ticking clock." — Manu Singh, Director, GPPL

Butt Welding Parameters: The Science Behind DVS

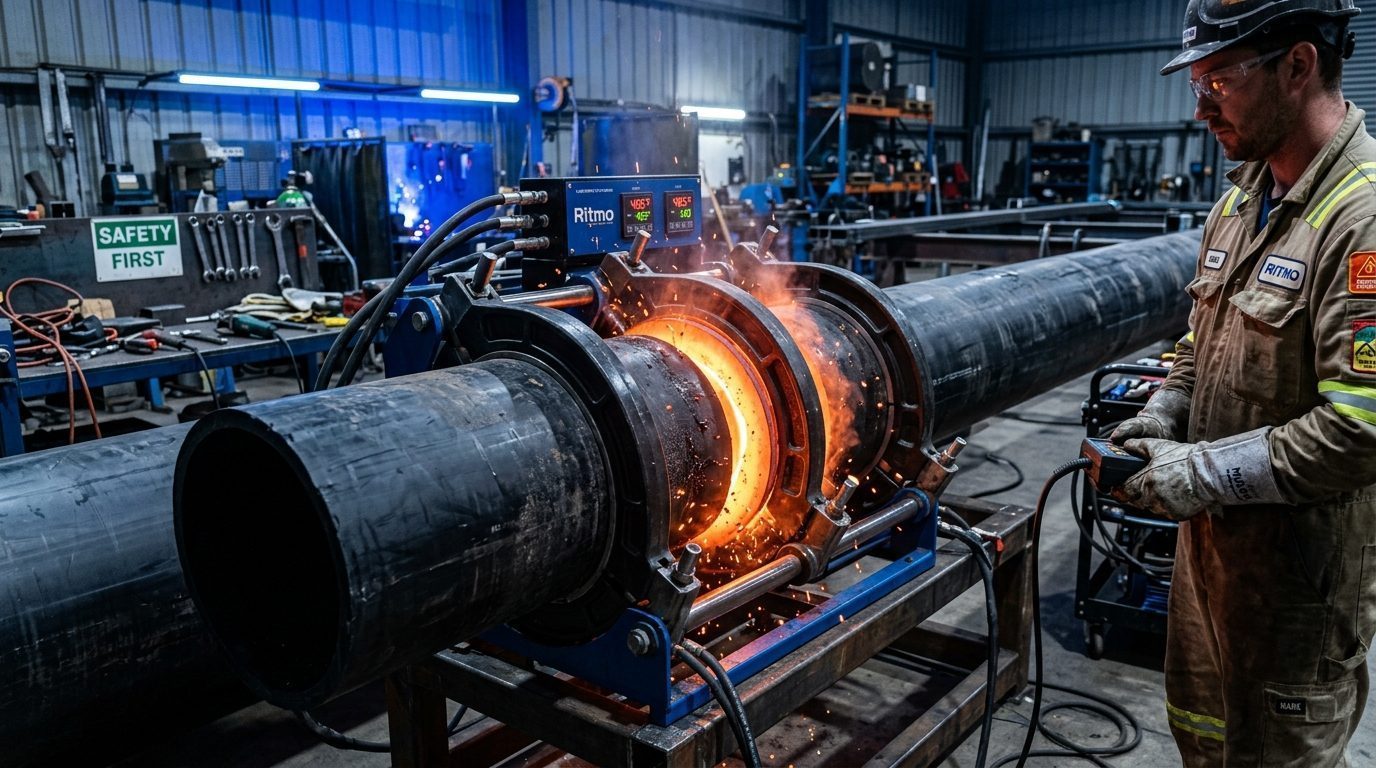

The heated tool butt welding process (polyfusion) consists of five distinct phases, each with tightly controlled parameters:

Phase 1 — Facing/Alignment: The pipe or sheet ends are machined flat and parallel using the integral facing tool of the welding machine. Maximum permissible gap between the two faces after facing: 0.5mm for wall thicknesses up to 50mm.

Phase 2 — Heating: The heating element (maintained at 200-230°C for PP; 210-240°C for PVDF; 220-240°C for PE) is interposed between the two workpiece ends. An initial approach pressure (P1) of 0.1-0.15 N/mm² is applied to ensure full contact. The heating phase duration is a function of wall thickness (typically 10 seconds per mm of wall thickness). A visible bead of melt (the "heel") must form uniformly around the full perimeter — bead height of 0.5-1.0mm per 10mm of wall indicates correct heating.

Phase 3 — Changeover: The heating element is rapidly withdrawn and the two faces brought together. Changeover time must be minimized (maximum 3-6 seconds depending on wall thickness and material) to prevent surface cooling and oxidation before fusion.

Phase 4 — Fusion: The fusion pressure (P2, typically 0.1-0.15 N/mm²) is applied immediately after changeover and maintained throughout the cooling phase. Insufficient fusion pressure results in voids and poor molecular interdiffusion; excessive pressure expels the melt bead and produces a thin, weak weld root.

Phase 5 — Cooling: The welded joint must be cooled under maintained fusion pressure without movement or vibration. Minimum cooling time is approximately 10 minutes per mm of wall thickness for PE and PP. Premature removal from the machine before cooling is complete is the most common cause of weld failure in field-fabricated systems.

Quality Testing Methods

DVS 2212 (Testing of Welded Joints of Thermoplastics) specifies the test methods for verifying weld quality:

Tensile Testing (DVS 2203-2): Dumbbell specimens machined from the welded joint and tested in tension. The Weld Factor (f) = tensile strength of weld / tensile strength of parent material. DVS minimum acceptance: f ≥ 0.8 for PE, PP, and PVDF butt welds.

Bend Testing (DVS 2203-5): Rectangular specimens bent to 180° over a mandrel of specified diameter. Acceptance: no cracking visible in the weld region. This test is sensitive to incomplete fusion and cold welds that may pass tensile testing.

Holiday Testing (Spark Testing): For liner applications, every weld seam in the thermoplastic liner is tested with a high-voltage DC spark tester (5-10 kV for 3-6mm liner thickness). Any void or pinhole in the weld that would allow chemical permeation to the FRP structural shell is detected as a spark discharge. This is a 100% inspection method — no sampling — mandatory for chemical vessel liners at GPPL.

Common Defects and Remedies

Understanding common weld defects and their root causes is essential for quality control:

Cold Weld (Insufficient Fusion): Root cause — heating time too short, heating element temperature too low, or changeover time exceeded. Appearance — visible boundary at weld root, low tensile strength (f < 0.6). Remedy — establish weld parameter qualification procedure and verify heating element temperature with calibrated pyrometer before each session.

Over-heated/Degraded Weld: Root cause — heating element too hot, heating time too long. Appearance — discolored, brittle weld bead; reduction in impact resistance. Remedy — recalibrate heating element and verify with test welds before production runs.

Eccentric Bead: Root cause — misalignment of workpiece faces before welding. Appearance — bead wider on one side than the other. Consequence — stress concentration in thin-bead area. Remedy — ensure machine clamping fixtures are in correct condition and alignment is verified during facing phase.

Conclusion

DVS standards for thermoplastic butt welding represent a comprehensive, scientifically validated framework for producing reliable, high-integrity joints in chemical containment applications. Adherence to these standards — through operator certification, parameter qualification records, and mandatory weld testing — is not a bureaucratic formality but a fundamental quality assurance requirement that directly determines the safety and service life of chemical storage and process systems. GPPL's fabrication shop operates under a certified welding quality management system with full DVS parameter traceability on all production welds.
