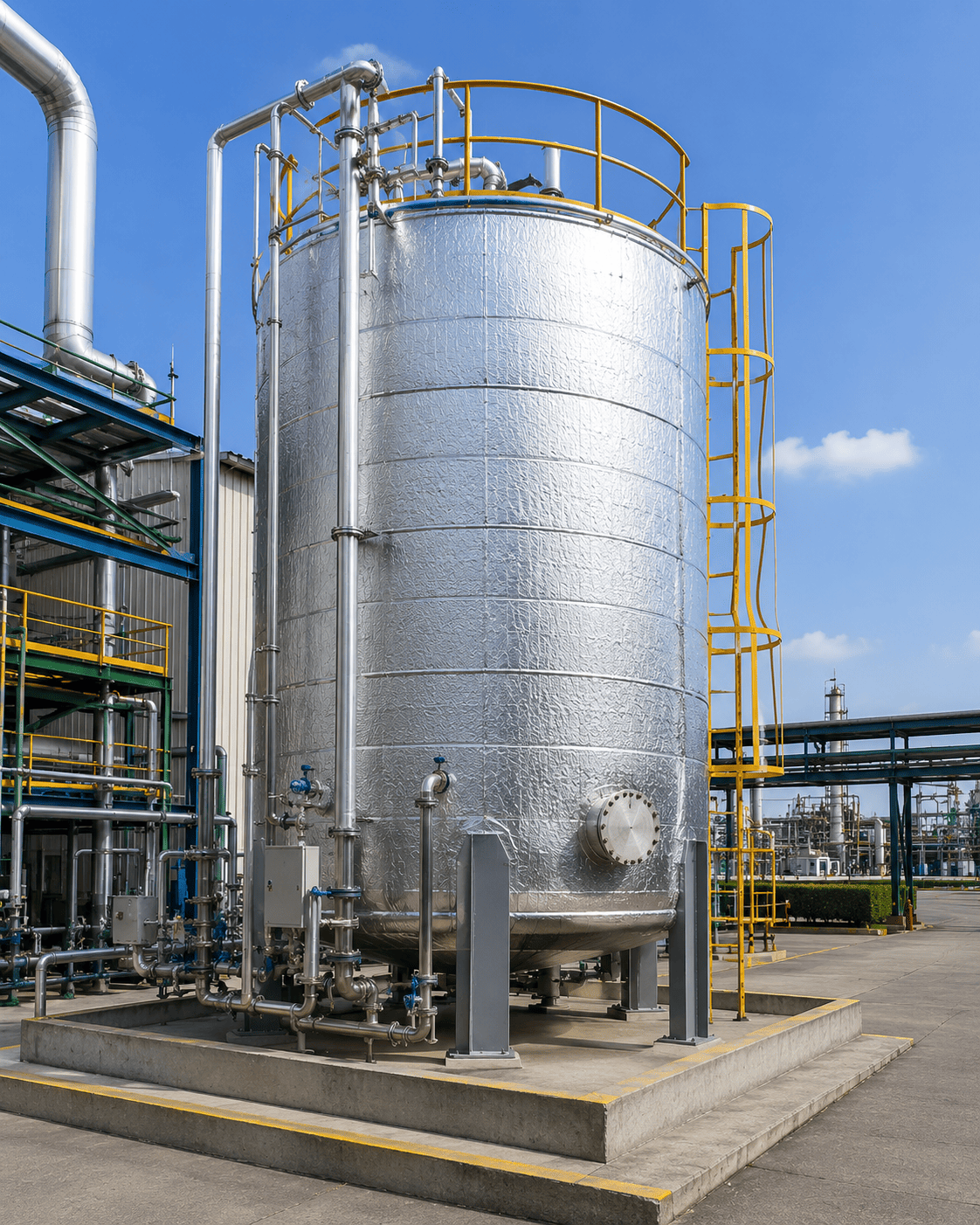

Temperature-Controlled Jacketed Tanks
Regulated heating & cooling SS304/SS316L vessels with integrated agitation.
Product Overview
Temperature-sensitive media — resins, process chemicals, viscous fluids — require storage that actively holds them within a defined temperature window. GPPL temperature-controlled jacketed tanks provide precisely that: a stainless steel vessel surrounded by a jacket through which a heating or cooling medium circulates, maintaining the stored fluid at process temperature throughout the shift. Built in SS304 and SS316L, the tanks are highly suited to polyester and other resin-grade bulk storage and to temperature-sensitive chemical and process duties. Aluminium cladding over the insulation gives a clean, corrosion-resistant external finish; integrated agitator systems keep stored liquids homogeneous; and highly efficient ultrasonic level indication prevents overfilling.
Key Features & Specifications
- Capacity: 10 KL to 70 KL
- MOC: SS304, SS316L
- Temperature Control: Regulated heating & cooling jacket
- Agitation: Integrated agitator / stirring systems
- Level Indication: High-efficiency ultrasonic L.I.
- Insulation: Specified for low temperature variation
- External Finish: Aluminium cladding
Materials & Engineering
We select resin systems and reinforcement grades tailored to resist chemical attack and temperature extremes:
- SS304 stainless steel for general heating/cooling duties
- SS316L stainless steel for highly aggressive or high-purity media
- High-density thermal insulation to minimize heat transfer
- Corrosion-resistant aluminium external cladding sheets
Available Range & Configurations
We design and manufacture the following configurations tailored to your project requirements:

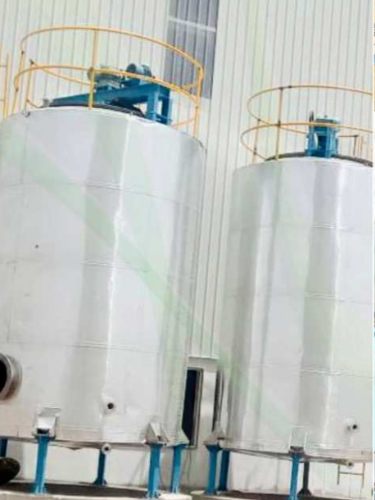

SS304 / SS316L Temperature Controlled Vessel
Regulated heating and cooling storage for polyester and other resin grades, speciality coatings, and temperature-sensitive process fluids
Industries & Use Cases
Our Temperature-Controlled Jacketed Tanks solutions are trusted across diverse demanding sectors:
Polyester & Resin Storage
Temperature-Sensitive Chemicals
Heated Transfer Systems
Speciality Coatings
Bulk storage and transfer piping systems
The GPPL Edge
Why leading manufacturing, chemical, and infrastructure firms partner with us:
Precise Temperature Hold — Active jacket regulation maintains media within tight tolerances
Homogeneous Storage — Integrated agitation prevents stratification and settling
Low Heat Loss — Insulation plus aluminium cladding minimises energy demand
Hygienic Construction — SS316L provides required cleanliness and corrosion resistance
Easy Plant Integration — Transferable through plant piping systems
Aesthetic Finish — Aluminium cladding gives a modern, professional appearance
Frequently Asked Questions
Answers to common queries regarding design, sizing, compliance, and deployment.
What temperature range can these jacketed tanks handle?
Our temperature-controlled jacketed tanks are designed for standard heating and cooling fluid circuits (hot water, steam, chilled water, or glycol) and can regulate temperatures from -10°C up to 150°C depending on design specifications.
What type of agitators are integrated into these tanks?
We offer turbine, anchor, paddle, or propeller-type agitators custom-selected based on the viscosity and density of your stored resin or chemical.
Can you supply the external piping systems for product transfer?
Yes. We supply and install complete plant-wide insulated piping systems in matching SS304/SS316L grades to transfer temperature-sensitive media directly from storage to the reactor or process line.
Interested in Temperature-Controlled Jacketed Tanks?
Our engineers can design and manufacture a custom solution tailored to your plant's specific chemical composition, temperature, and space requirements.
