Acid fume management is among the most critical but frequently underspecified aspects of chemical plant safety engineering. The volatile nature of concentrated acids — particularly HCl, HF, HNO₃, and acetic acid — means that even well-designed storage and process vessels will generate hazardous vapor concentrations in the surrounding atmosphere during filling, agitation, and temperature fluctuation. Effective industrial fume exhaust systems protect worker health, prevent equipment corrosion from airborne acid attack, and ensure compliance with Workplace Exposure Limits (WELs) mandated under the Factories Act and BIS standards.
Ghaziabad Polymers Pvt. Ltd. designs and supplies complete FRP fume exhaust systems — including ductwork, fans/blowers, and wet scrubbers — for chemical storage and process facilities across India.
Understanding Acid Fume Hazards
Acid vapors present multiple hazards simultaneously. At the human level, even brief exposures to HCl at concentrations above 5 ppm cause immediate throat and lung irritation; OSHA's Short-Term Exposure Limit (STEL) for HCl is 2 ppm over a 15-minute period. At the structural level, airborne acid attacks steel structures, electrical conduit, instrumentation, and even concrete — causing progressive structural degradation that is invisible until it reaches a critical threshold.
Key Workplace Exposure Limits for common acids (ACGIH TLV-TWA values):
| Chemical | TLV-TWA (ppm) | STEL (ppm) | IDLH (ppm) |
|---|---|---|---|
| Hydrochloric Acid (HCl) | Ceiling: 2 | — | 50 |
| Sulfuric Acid (H₂SO₄) | 0.2 (thoracic) | — | 15 |
| Nitric Acid (HNO₃) | 0.2 | 0.4 | 25 |
| Hydrogen Fluoride (HF) | Ceiling: 0.5 | — | 30 |
| Acetic Acid | 10 | 15 | 50 |
"Every rupee invested in a correctly designed FRP fume exhaust system returns multiple rupees in reduced structural maintenance, avoided worker compensation costs, and regulatory compliance. It is one of the most cost-effective safety investments a chemical plant can make." — C.V. Singh, Founder & Director, GPPL

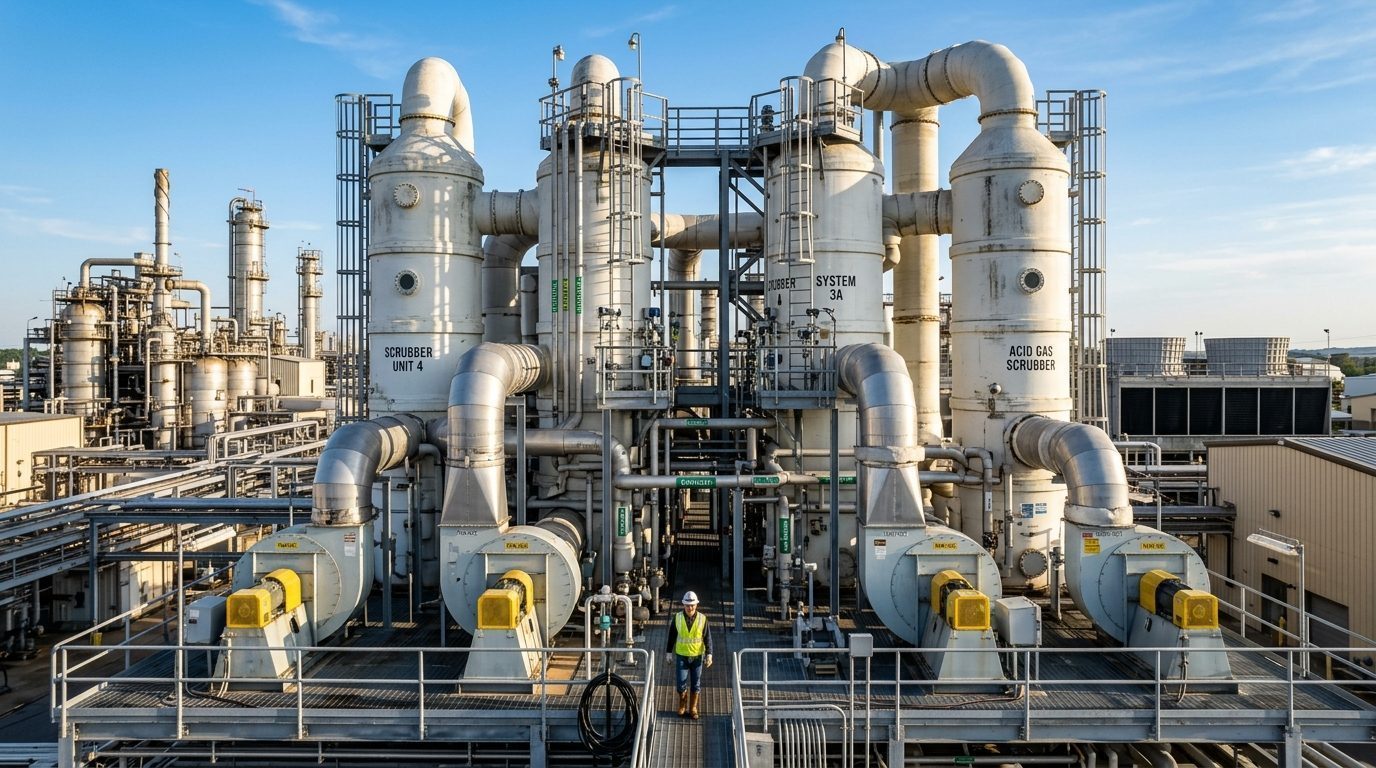

Chemical Scrubber Design
The heart of any acid fume exhaust system is the wet scrubber — a vessel in which contaminated air is brought into intimate contact with a scrubbing liquid (typically water or dilute caustic soda solution) to absorb and neutralize the acid vapor before safe discharge to atmosphere.
Counter-Current Packed Tower Scrubbers are the most common configuration for HCl and H₂SO₄ fume control. Contaminated air enters at the bottom of the tower, travels upward through a packed bed of polypropylene or PVC Pall rings, while scrubbing liquid is distributed downward from the top. The packing creates a very high surface area for gas-liquid contact, maximizing absorption efficiency. A well-designed packed tower can achieve 99%+ HCl removal efficiency.
Material of Construction: Every component in contact with acid fumes — the scrubber body, packing support grids, liquid distributors, demister pads, and drain connections — must be specified in chemically resistant materials. FRP (vinyl ester or epoxy) is the standard material for the scrubber vessel; packing and internal components are typically PP, PVDF, or ECTFE for aggressive service.
Scrubbing Liquid Management: For HCl fume scrubbing with caustic soda (NaOH), the scrubbing liquid becomes progressively more concentrated in sodium chloride as absorption proceeds. The scrubbing liquid circuit must include a bleed-and-feed system to maintain effective absorption efficiency — typically targeting pH above 7 in the circulating liquid. The bleed stream (NaCl solution) requires disposal as liquid effluent or further treatment.
FRP Blower Selection
The fume extraction blower — the system's "heart" that drives contaminated air from the capture point through the ductwork and scrubber — must be specified in materials compatible with the acid vapor concentration in the airstream. For HCl service at concentrations above 10 ppm, standard steel fans are rapidly destroyed by corrosion. FRP fans and blowers (centrifugal design with FRP impeller and casing) provide service lives exceeding 10 years in concentrated acid fume service.
Key blower selection parameters: volume flow rate (m³/hr or CFM) determined by the number of capture points and dilution factor, static pressure (Pa) to overcome duct friction losses and scrubber pressure drop, and motor power. Safety factors of 1.2x on flow rate and 1.3x on static pressure are standard for acid fume service to ensure continued performance as filters and scrubber packing age.
System Integration and Ductwork
FRP ductwork is the standard specification for acid fume conveying lines above 5 ppm concentration. FRP ducts are manufactured to circular or rectangular cross-sections, with wall thickness calculated for the design pressure class (typically Class 1 or 2 to SMACNA standards). All joints are made with FRP flanges and EPDM or PTFE gaskets; no metal fasteners should contact the duct interior in concentrated acid service.
Critical design elements: duct slope to prevent liquid acid accumulation at low points (minimum 2° slope to drain), access doors for inspection and cleaning, explosion relief panels (vent panels) if hydrogen evolution from acid-metal contact is possible, and earthing bonding strips to prevent static charge buildup.
Conclusion
A correctly designed FRP fume exhaust system is not an optional add-on — it is a fundamental safety infrastructure requirement for any facility handling volatile acids. GPPL provides complete design-to-installation fume extraction systems, from initial dispersion modeling and equipment sizing through FRP fabrication, blower supply, and commissioning support. Our systems are designed to meet BIS, OSHA, and EN/ISO standards applicable to the Indian and export market.
